Millwork – Recessed Flange – 90º Mounting Angle

Get more info

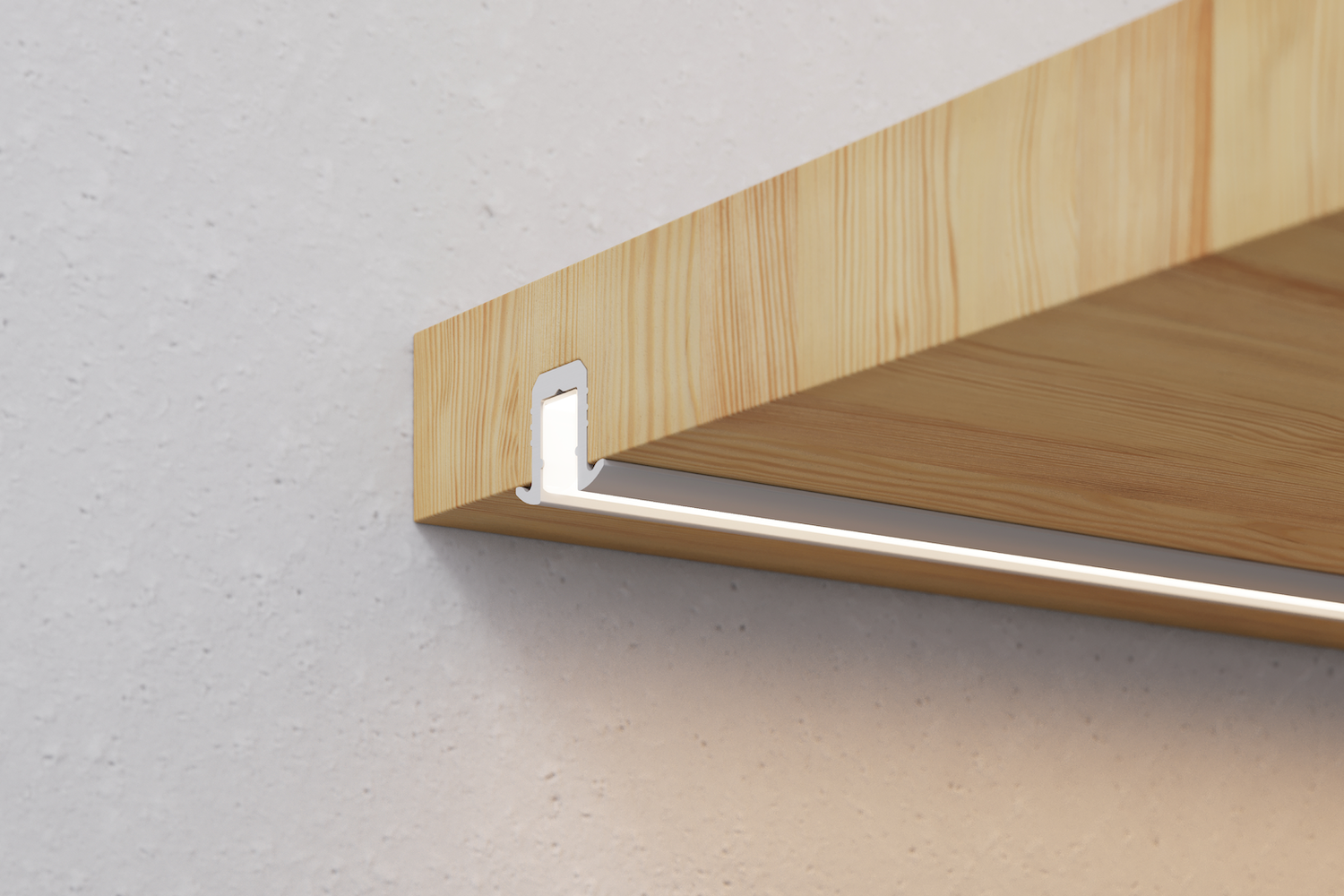

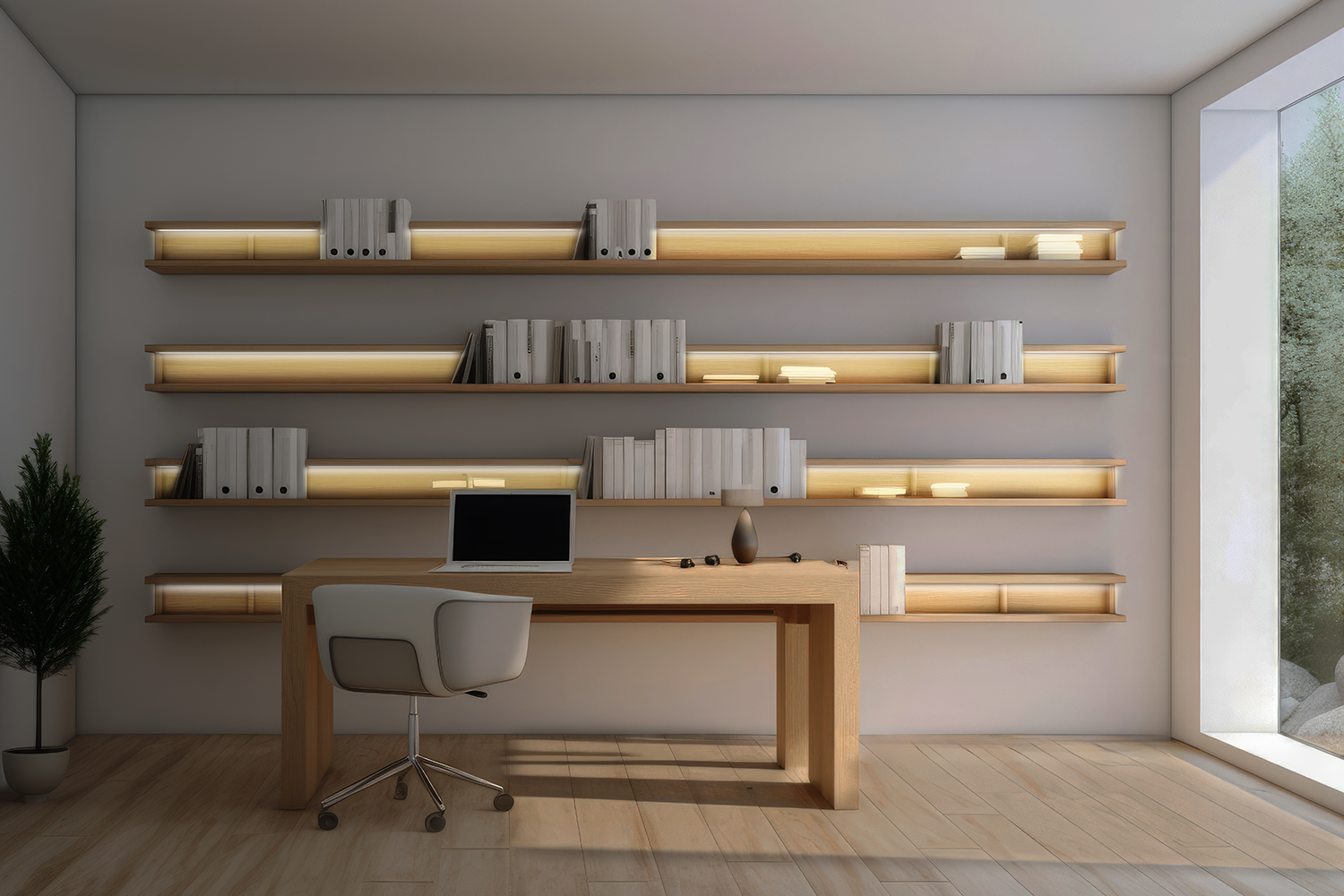

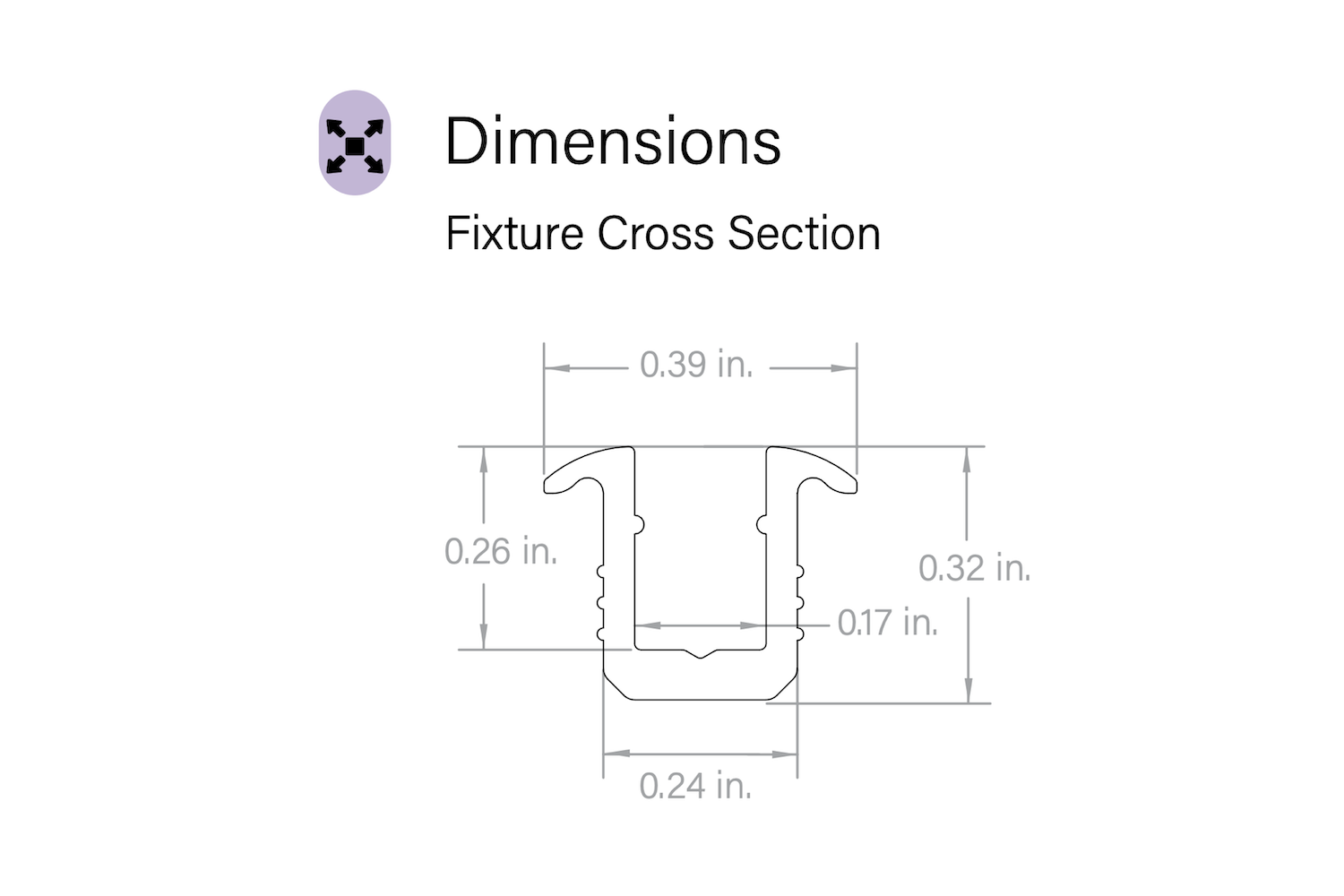

Millwork – Recessed Flange – 90º Mounting Angle is a recessed luminaire crafted for precise integration into 1/4” wide by 3/8” deep milled slots on shelves, desks, and counters. Tailored for particle board panels, including melamine-faced surfaces often used in kitchens and cabinetry, this profile offers both functionality and refined aesthetics. Its angled back ensures effortless installation, while the retention ridges inside the profile hold the light engine securely in place. The flanges provide a polished appearance by covering slot edges and masking any rough cuts or chipped edges, creating a seamless, professional result.



Features Submittal Form Instructions Literature IES Files Photometrics Revit Files
Seamless Integration
Chamfered edged back effortlessly directs the channel into the milled slot, ensuring swift and hassle-free installation
Clean Finish
Flanges hide imperfections and uneven edges resulting from slot milling
Secure Installation
Retention ridges inside the profile securely hold the light engine in place, ensuring a smooth and straightforward installation. External retention ridges grip the wood or particle board to securely hold the channel in place.
Multiple Power Options
Create a precise 5/32 in. hole along the V-grooved drill guide for power access exactly where needed, or neatly route wires through the channel's end.
Factory Pre-Wired End Piece
Our complete Millwork fixtures include a factory pre-wired end piece making installation a breeze

Please contact us for Revit Files.

Features
Seamless Integration
Chamfered edged back effortlessly directs the channel into the milled slot, ensuring swift and hassle-free installation
Clean Finish
Flanges hide imperfections and uneven edges resulting from slot milling
Secure Installation
Retention ridges inside the profile securely hold the light engine in place, ensuring a smooth and straightforward installation. External retention ridges grip the wood or particle board to securely hold the channel in place.
Multiple Power Options
Create a precise 5/32 in. hole along the V-grooved drill guide for power access exactly where needed, or neatly route wires through the channel's end.
Factory Pre-Wired End Piece
Our complete Millwork fixtures include a factory pre-wired end piece making installation a breeze
