Millwork – Surface Mount – 90º Mounting Angle – Up/Down

Features Submittal Form Instructions Literature IES Files Photometrics Revit Files

Shelf Lighting

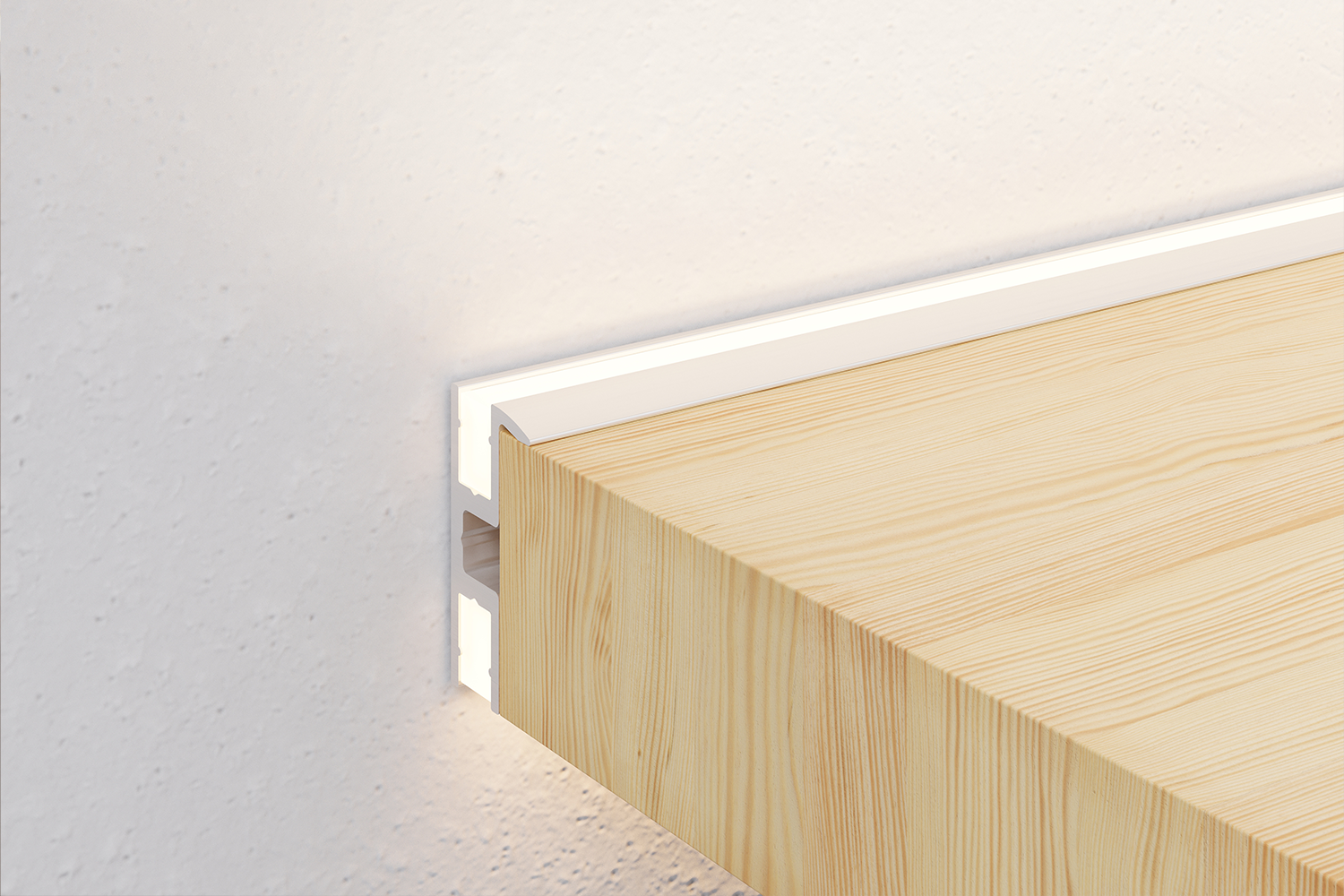

Designed specifically for 3/4 in. shelves

Clean Finish

Flanges conceal rough edges and create a clean, polished appearance

Secure Installation

Retention ridges inside the profile securely hold the light engine in place, ensuring a smooth and straightforward installation

Multiple Power Options

Create a precise 5/32 in. hole along the V-grooved drill guide for power access exactly where needed, or neatly route wires through the channel's end.

Concealed Wire Conduit

Concealed wire conduit provides routing of wires within the channel

Factory Pre-Wired End Piece

Our complete Millwork fixtures include a factory pre-wired end piece making installation a breeze

Millwork – Surface Mount – 90º Mounting Angle – Up/Down – 3/4 in. Shelves Submittal Form

Millwork – Surface Mount – 90º Mounting Angle – Up/Down – 3/4 in. Shelves Installation Instructions

Millwork Family Brochure

Millwork – Surface Mount – 90º Mounting Angle – Up/Down – 3/4 in. Shelves IES Files

Millwork – Surface Mount – 90º Mounting Angle – Up/Down – 3/4 in. Shelves Photometrics

Please contact us for Revit Files.
