Millwork – Recessed – 90º Mounting Angle

Get more info

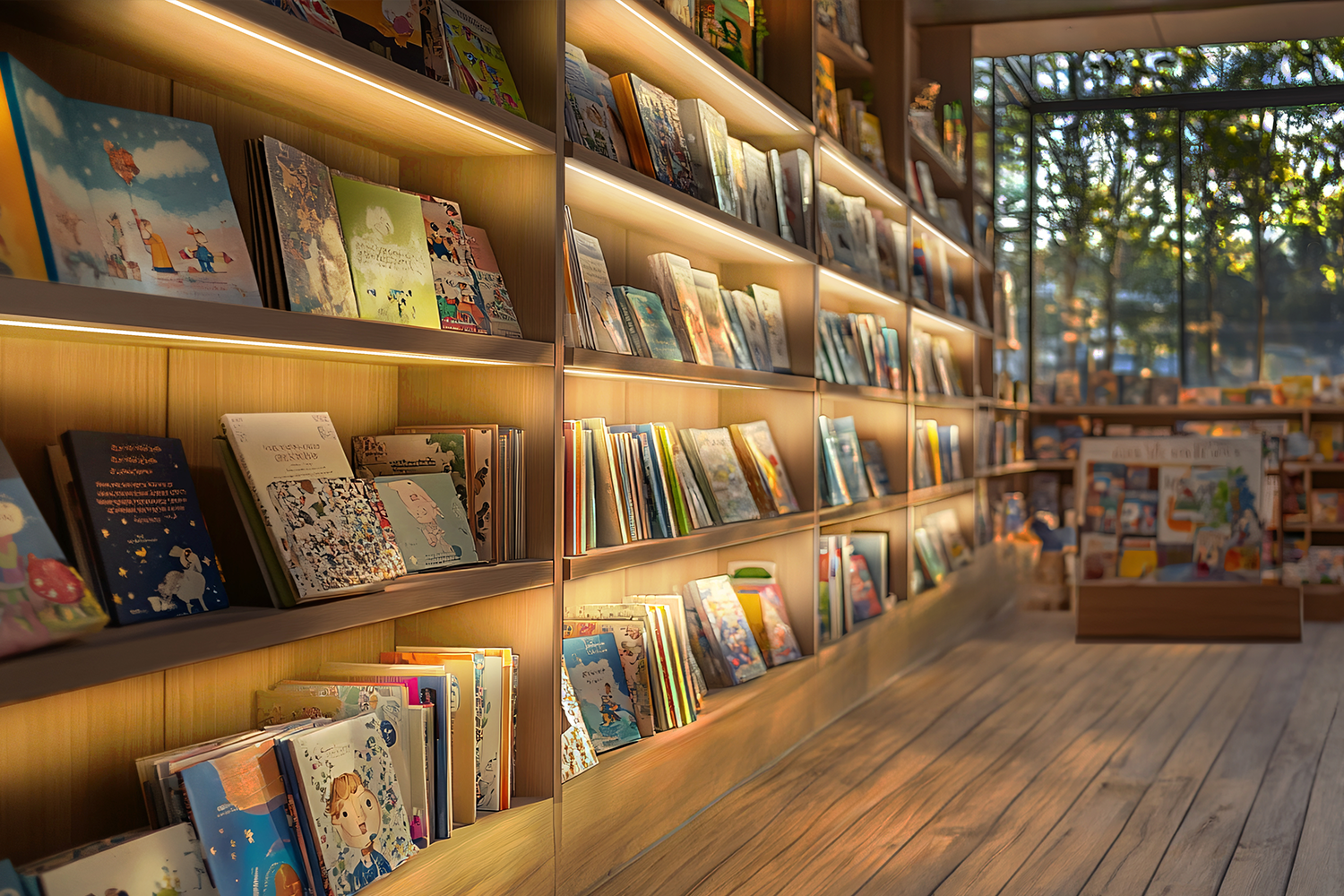

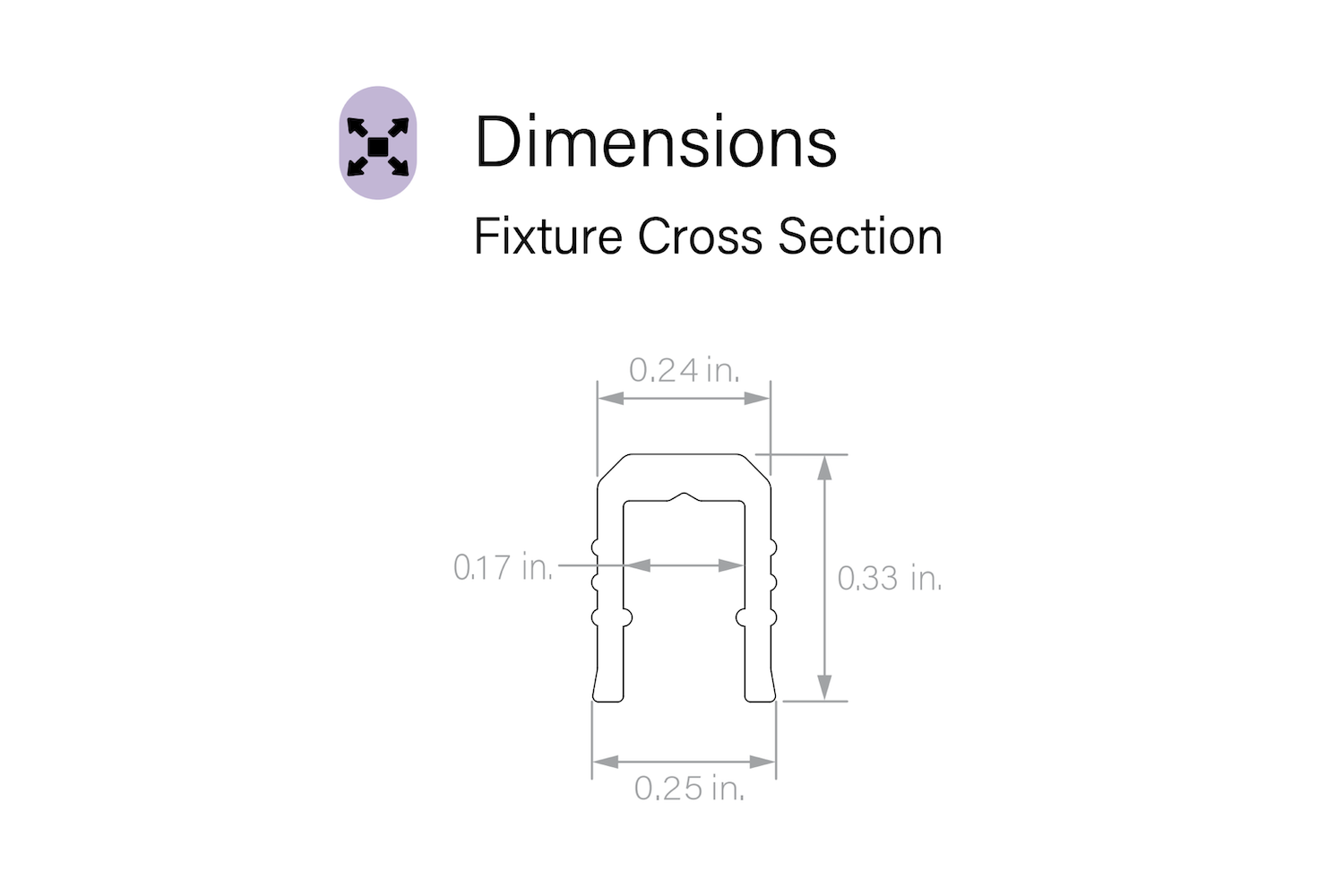

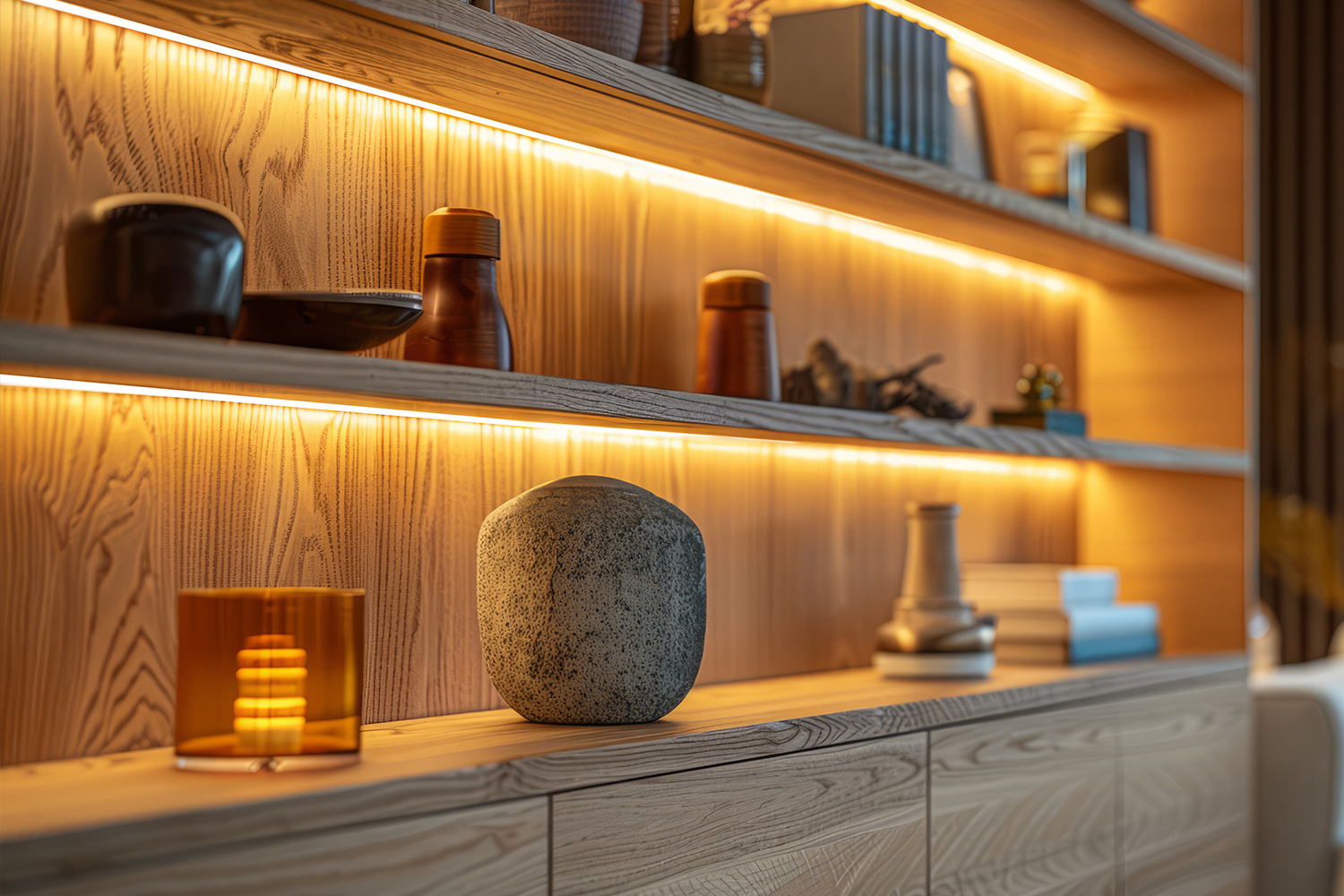

Millwork – Recessed – 90º Mounting Angle is designed for woodwork and millwork applications and provides a refined, recessed luminaire tailored for shelves, desks, and counters. Designed to fit precisely into 1/4” wide by 3/8” deep milled slots in hardwood, plywood, and MDF. Its angled back ensures effortless installation, while the retention ridges inside the profile firmly secure the light engine in place, delivering a polished and professional result that fills the milled slot perfectly.

Features Submittal Form Instructions Literature IES Files Photometrics Revit Files
Seamless Integration
Chamfered edged back effortlessly directs the channel into the milled slot, ensuring swift and hassle-free installation
Secure Installation
Retention ridges inside the profile securely hold the light engine in place, ensuring a smooth and straightforward installation. External retention ridges grip the wood or particle board to securely hold the channel in place.
Multiple Power Options
Create a precise 5/32 in. hole along the V-grooved drill guide for power access exactly where needed, or neatly route wires through the channel's end.
Factory Pre-Wired End Piece
Our complete Millwork fixtures include a factory pre-wired end piece making installation a breeze

Please contact us for Revit Files.

Features
Seamless Integration
Chamfered edged back effortlessly directs the channel into the milled slot, ensuring swift and hassle-free installation
Secure Installation
Retention ridges inside the profile securely hold the light engine in place, ensuring a smooth and straightforward installation. External retention ridges grip the wood or particle board to securely hold the channel in place.
Multiple Power Options
Create a precise 5/32 in. hole along the V-grooved drill guide for power access exactly where needed, or neatly route wires through the channel's end.
Factory Pre-Wired End Piece
Our complete Millwork fixtures include a factory pre-wired end piece making installation a breeze
