Millwork – Surface Mount – 90° Mounting Angle

Get more info

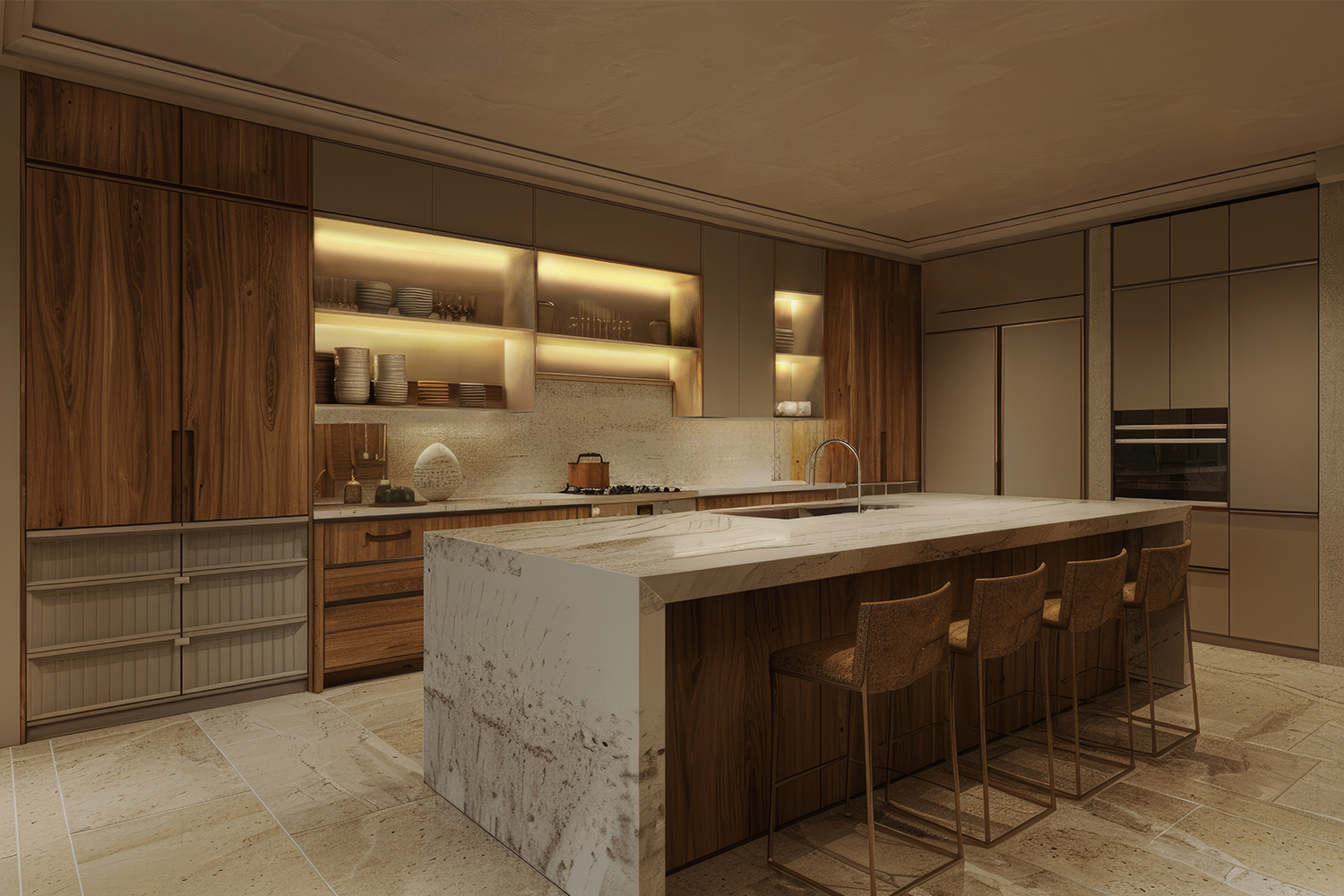

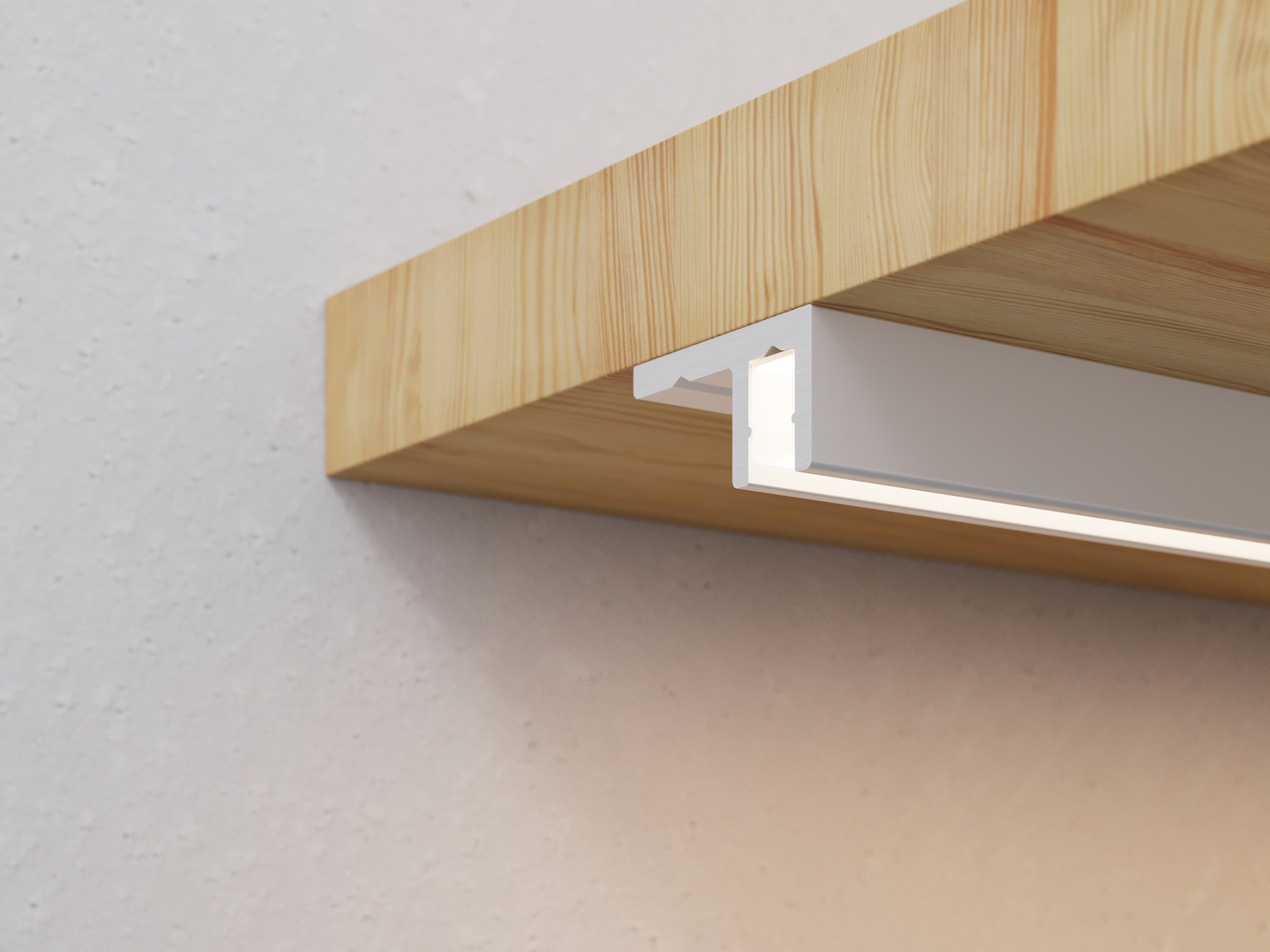

Millwork – Surface Mount – 90º Mounting Angle is designed for woodwork and millwork applications. This innovative luminaire seamlessly integrates into the underside of shelves, counters, and desks, delivering refined, direct downward lighting. Engineered for effortless installation with a V-grooved drill guide for power access and retention ridges that securely hold the light engine in place.

Features Submittal Form Instructions Literature IES Files Photometrics Revit Files
Secure Installation
Retention ridges inside the profile securely hold the light engine in place, ensuring a smooth and straightforward installation
Easy Mounting
Mount effortlessly with high-strength VHB tape or #6 wood screws, utilizing the V-grooved drill guide for accurate positioning
Multiple Power Options
Create a precise 5/32 in. hole along the V-grooved drill guide for power access exactly where needed, or neatly route wires through the channel's end
Factory Pre-Wired End Piece
Our complete Millwork fixtures include a factory pre-wired end piece making installation a breeze

Please contact us for Revit Files.

Features
Secure Installation
Retention ridges inside the profile securely hold the light engine in place, ensuring a smooth and straightforward installation
Easy Mounting
Mount effortlessly with high-strength VHB tape or #6 wood screws, utilizing the V-grooved drill guide for accurate positioning
Multiple Power Options
Create a precise 5/32 in. hole along the V-grooved drill guide for power access exactly where needed, or neatly route wires through the channel's end
Factory Pre-Wired End Piece
Our complete Millwork fixtures include a factory pre-wired end piece making installation a breeze
