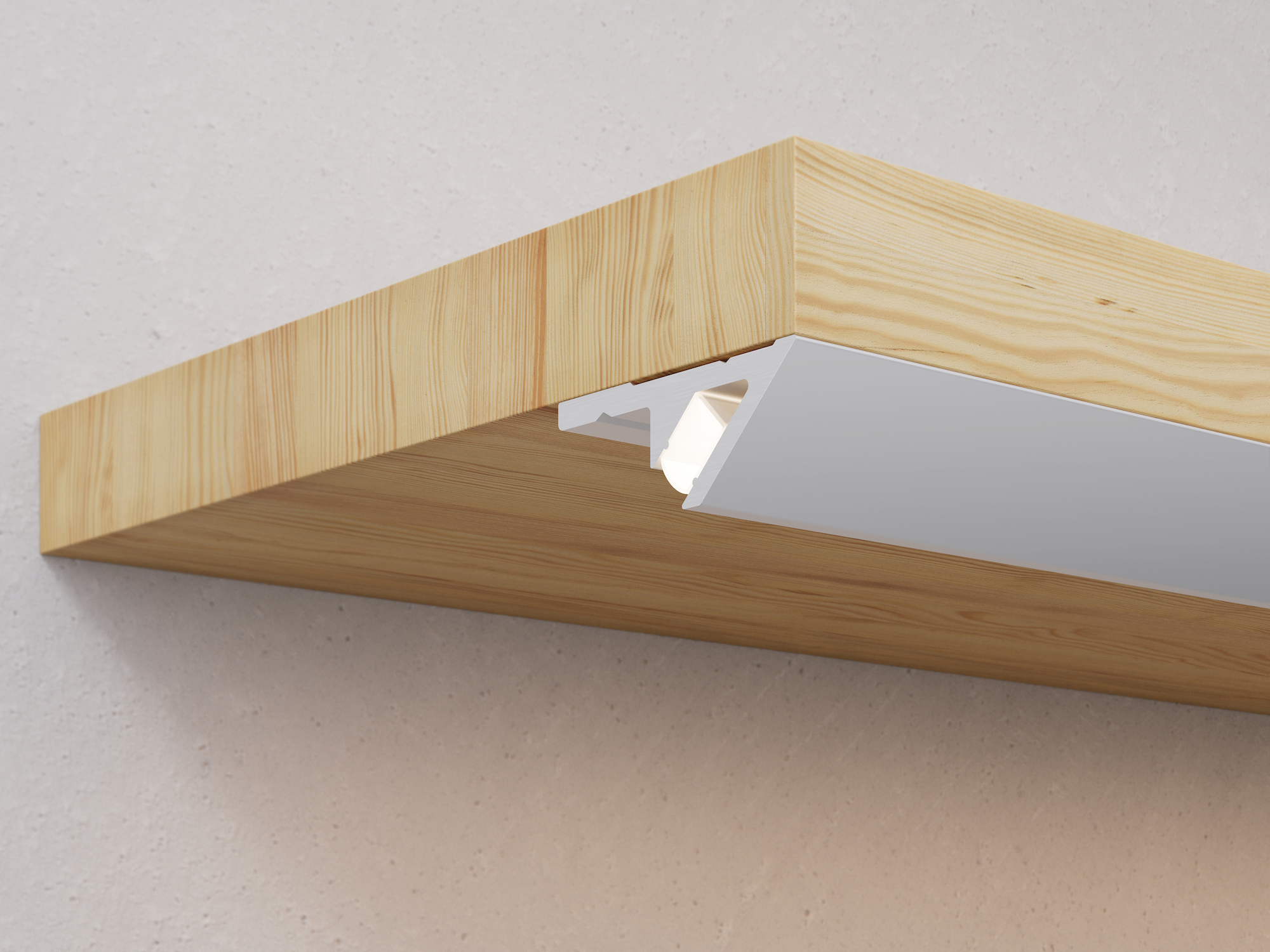

Millwork – Surface Mount – 45° Mounting Angle

Get more info

Millwork – Surface Mount – 45º Mounting Angle is designed for woodwork and millwork applications. This innovative luminaire seamlessly integrates into the underside of shelves, counters, and desks. Its angled profile directs light with precision within the shelf or cabinet, while the front lip blends effortlessly with the shelf edge, creating a discreet, low-visibility installation. Engineered for effortless installation with a V-groove drill guide for power access and retention ridges that securely hold the light engine in place.

Features Submittal Form Instructions Literature IES Files Photometrics Revit Files
Seamless Integration
The front lip sits flush with the shelf’s edge, and its angled profile subtly conceals the channel from view
Secure Installation
Retention ridges inside the profile securely hold the light engine in place, ensuring a smooth and straightforward installation
Easy Mounting
Mount effortlessly with high-strength VHB tape or #6 wood screws, utilizing the V-grooved drill guide for accurate positioning
Multiple Power Options
Create a precise 5/32 in. hole along the V-grooved drill guide for power access exactly where needed, or neatly route wires through the channel's end.
Factory Pre-Wired End Piece
Our complete Millwork fixtures include a factory pre-wired end piece making installation a breeze

Please contact us for Revit Files.

Features
Seamless Integration
The front lip sits flush with the shelf’s edge, and its angled profile subtly conceals the channel from view
Secure Installation
Retention ridges inside the profile securely hold the light engine in place, ensuring a smooth and straightforward installation
Easy Mounting
Mount effortlessly with high-strength VHB tape or #6 wood screws, utilizing the V-grooved drill guide for accurate positioning
Multiple Power Options
Create a precise 5/32 in. hole along the V-grooved drill guide for power access exactly where needed, or neatly route wires through the channel's end.
Factory Pre-Wired End Piece
Our complete Millwork fixtures include a factory pre-wired end piece making installation a breeze
